Double Side Customized Flexible Rigid Polyimide Copper FPC Flexible PCB

Shenzhen Xinchenger Electronic Co.,Ltd

Double Side Customized Flexible Rigid Polyimide Copper FPC Flexible PCB

  • 1
  • 2
  • 3

Brand Name : XCE

Model Number : XCERigidFlex PCB

Certification : CE,ROHS, FCC,ISO9008,SGS,UL

Place of Origin : China

MOQ : 1pc

Price : negotiation

Supply Ability : 1, 000, 000 PCS / week

Packaging Details : inner: vacuum-packed bubble bag outer: carton box

Material : FR4,Ployimide

PCB layer : 1-28layers

Min. Hole Size : 6mil

Board size : Min 6 x 6mm | Max 457 x 610m

Surface Finishing : ENIG, Immersion silver, etc.

Copper Thickness : 0.5oz - 2.0oz

Assembly Option : yes

Electronics Source : yes

Contact Now

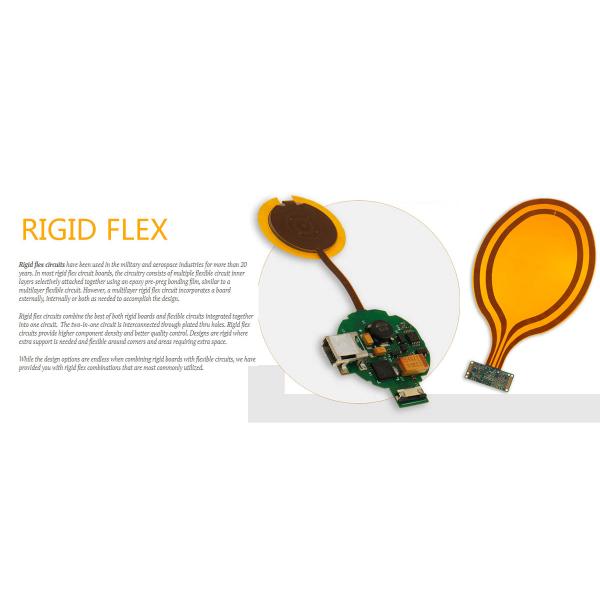

What is a Rigid Flex PCB?
Printed Circuits Rigid Flex PCBA rigid flex printed circuit board (PCB) is a hybrid circuit board design that integrates elements from both hardboard and flexible circuits. Rigid flex PCBs are rigid at some points on the board and flexible at others. Because of this, rigid flex circuits can be folded or continuously flexed while maintaining the shape of areas that need extra support. The circuits are typically multi-layered and are comprised of flexible circuit substrates joined with rigid boards. The flexible layers are buried internally and completely penetrate the rigid sections of the PCB.


One of the key benefits of a rigid flex PCB is its slim profile. The standard dielectric in flexible circuits is .001 – .002”, making it a great choice for ultra thin—and ultra light—packaging needs. Adhesiveless laminates, HDI, and thin copper layers make it ideal for fine line technology, giving you the smallest, thinnest, and lightest solution for your circuit designs.


The proper application of Rigid-Flex circuit boards offers optimum solutions for difficult, limited space conditions. This technology offers the possibility of a secure connection of device components with the assurance of polarity and contact stability, as well as a reduction in plug and connector components.


Additional advantages of Rigid-Flex circuit boards are dynamic and mechanical stability, the resulting 3-dimensional freedom of design, simplified installation, space savings, and maintenance of uniform electrical characteristics.


Use of Rigid-Flex circuit boards can reduce the total cost of the final product.





Rigid-flex pcb

Manufacture capacity

Layer Counts

1-8Layer

Base Material

Polyimide/FR4

Copper foil thickness

1oz / 1/2oz/ 1/3oz

PI thickness

25μm / 12.5μm

Board thickness

0.07mm-0.5mm

Adhesive

13μm

Max. board size

400*800 mm

Product thickness tolerance

±0.03mm

Min. Hole Diameter

0.1mm

Min. Line Width / Distance

0.04mm

Etching tolerance

±0.015mm

PTH Hole dia. tolerance

±0.03mm

NPTH Hole dia. tolerance

±0.05mm

Outline Dimension tolerance

±0.075mm

Stiffener material type

±0.075mm PI / FR4 / PET / Steel piece

Outline profile

Punching / Laser cut / Drilled

Surface finish

HASL / OSP / ENIG / Immersion silver / Tin / Ni

Solder mask color

Multi-color

Silkscreen color

White/Black

Acceptable file format

CAD / Gerber file / powerpcb / AutoCAD / P-cad / CAM-350 /

Rigid-Flex printed circuit boards are boards using a combination of flexible and rigid board technologies in an application. Most rigid flex boards consist of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally, depending upon the design of the application. The flexible substrates are designed to be in a constant state of flex and are usually formed into the flexed curve during manufacturing or installation.


Rigid-Flex designs are more challenging than the design of a typical rigid board environment, as these boards are designed in a 3D space, which also offers greater spatial efficiency. By being able to design in three dimensions rigid flex designers can twist, fold and roll the flexible board substrates to achieve their desired shape for the final application's package.


A Rigid-Flex PCB is a hybrid board that consists of a combination of rigid and flexible printed circuit boards. These boards are designed by combining flexible circuit boards with one or more rigid boards.


The flexible part of the board is usually used for providing interconnections between rigid boards, which allows narrow conductor lines which take up less space making the boards smaller. Using flexible PCBs for interconnections also eliminates the need for connectors, which are bulky and heavy making rigid-flex printed circuit boards much lighter. Interconnections using flexible PCBs over connectors also provide lower losses and accommodate controlled impedance and eliminate connection problems such as cold joints.


Another major advantage of Rigid-Flex boards is the use of different substrate materials in different sections on the board. Some sections of the board might require high performance substrates which are expensive while others sections might not could use a standard FR-4 substrate. This flexibility in terms of substrate selection can optimize the performance and cost of Rigid-Flex PCBs.


Designers often use Rigid-Flex PCBs as they provide a lot of design flexibility. These boards are also more cost effective than flexible PCB boards.
